VOX400R20020K

VOX400R20020K

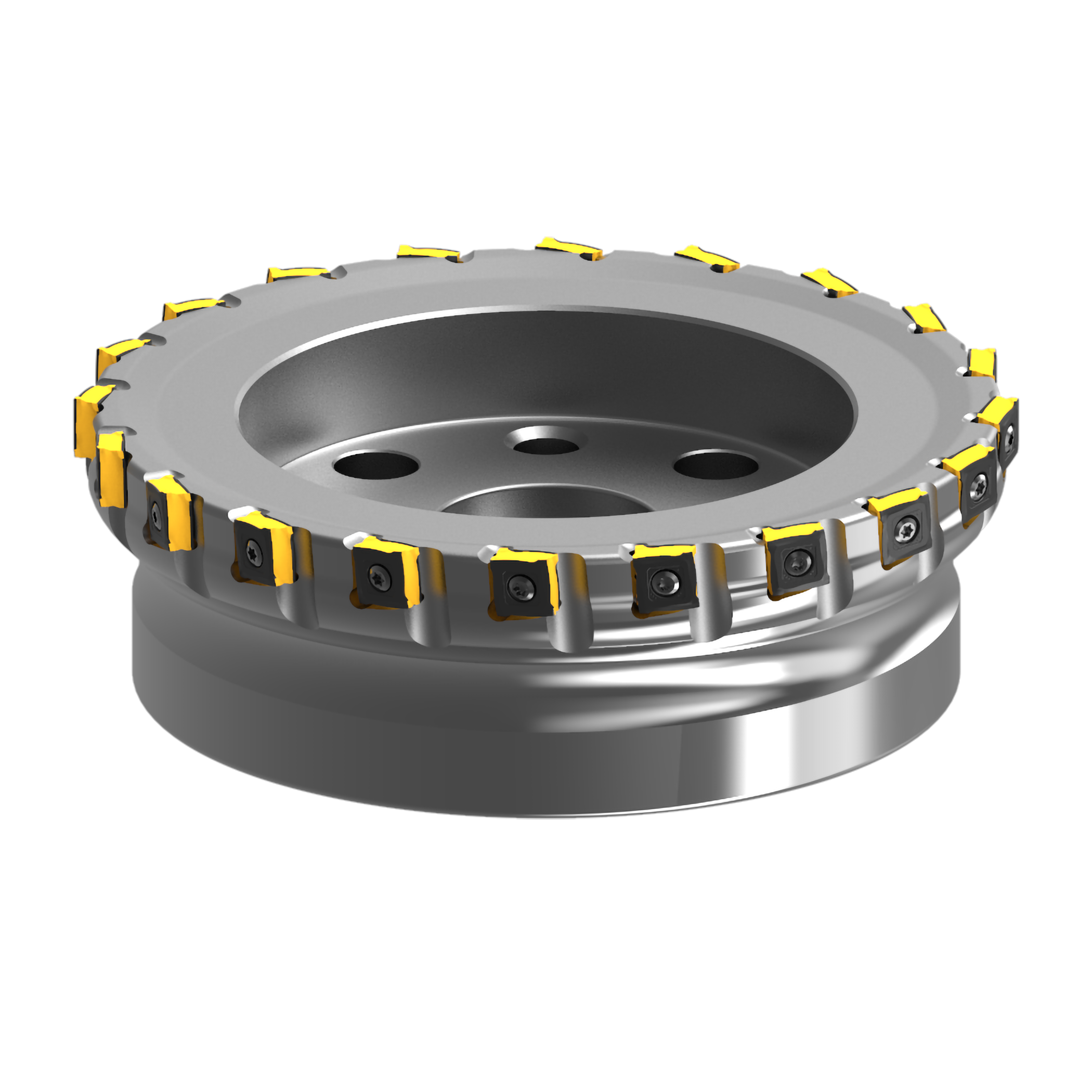

  • Strong Edge Insert Type Shoulder Milling Cutter for Cast Iron
  • Tangential inserts with high strength cutting edge.
  • Economical 8 cutting edge inserts.
  • Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：560956

EAN Code： 4994196575564

ANSI：VOX400R20020K

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
200
LF
63
DCONMS
47.625
CBDP
35
DAH
18
DCCB
130
KWW
25.4
L8
14.22
DHUB
175
KAPR
90°
APMX
10
DBC
101.6
CSP
-
CICT
20
ZEFP
20
GAMP
-6°
GAMF
-18°
WT
8.5 kg
