VOX400

VOX400_Arbor_MI （Cast Iron）

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/L_Milling_KAPR_90_r.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_3_Milling_Accuracy_roughing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_10_Milling_Application_Shoulder%2520milling_1.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_18_Milling_Application_Face_milling_near_the_Wall.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_15_Milling_Application_Face%2520milling.svg
K

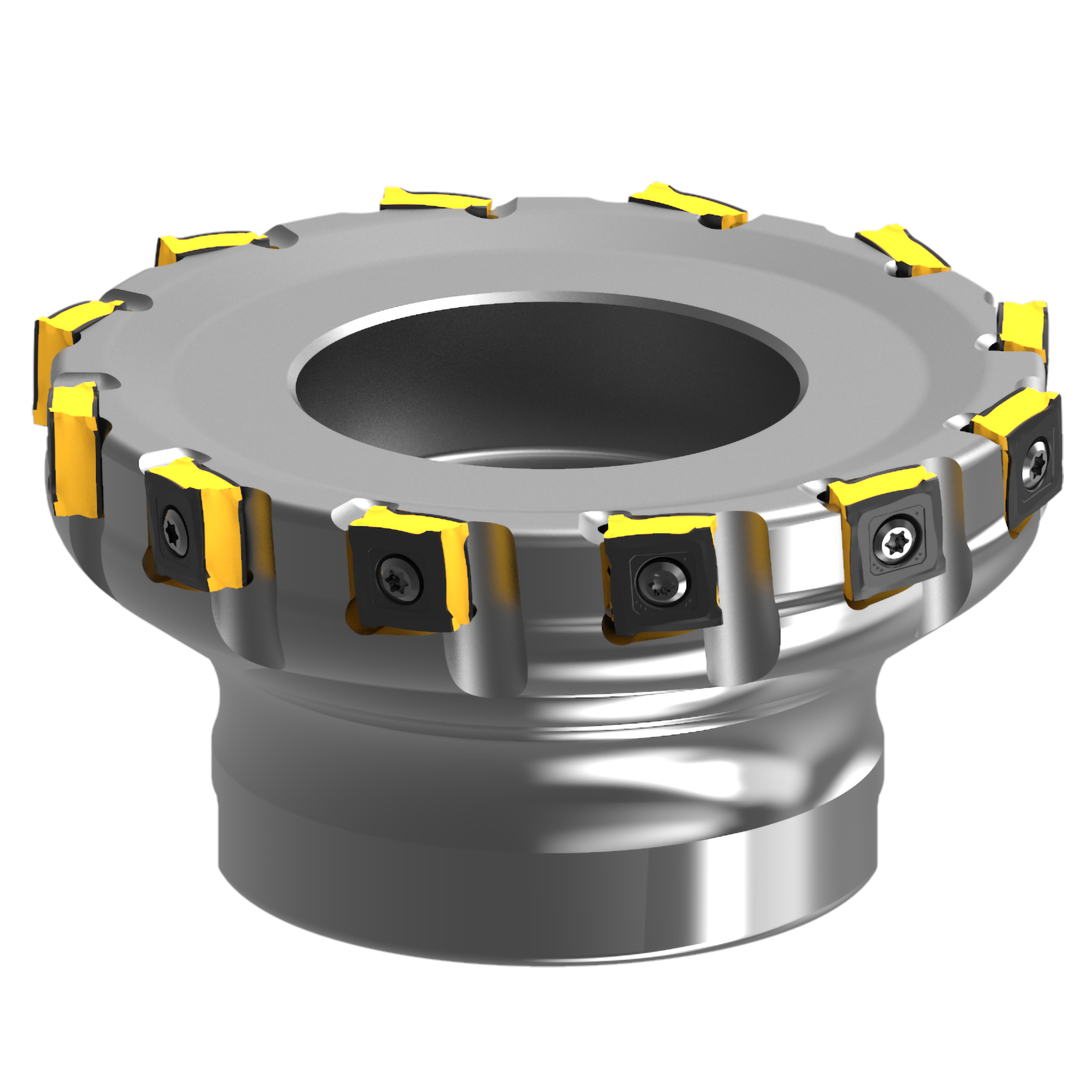

VOX400R12512E

VOX400R12512E

  • Strong Edge Insert Type Shoulder Milling Cutter for Cast Iron
  • Tangential inserts with high strength cutting edge.
  • Economical 8 cutting edge inserts.
  • Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：560913

EAN Code： 4994196575526

ANSI：VOX400R12512E

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
125
LF
63
DCONMS
38.1
CBDP
40
DCCB
60
KWW
15.9
L8
10
DHUB
80
KAPR
90°
APMX
10
CSP
-
CICT
12
ZEFP
12
GAMP
-6°
GAMF
-18°
WT
2.7 kg
