VOX400R10006D

VOX400R10006D

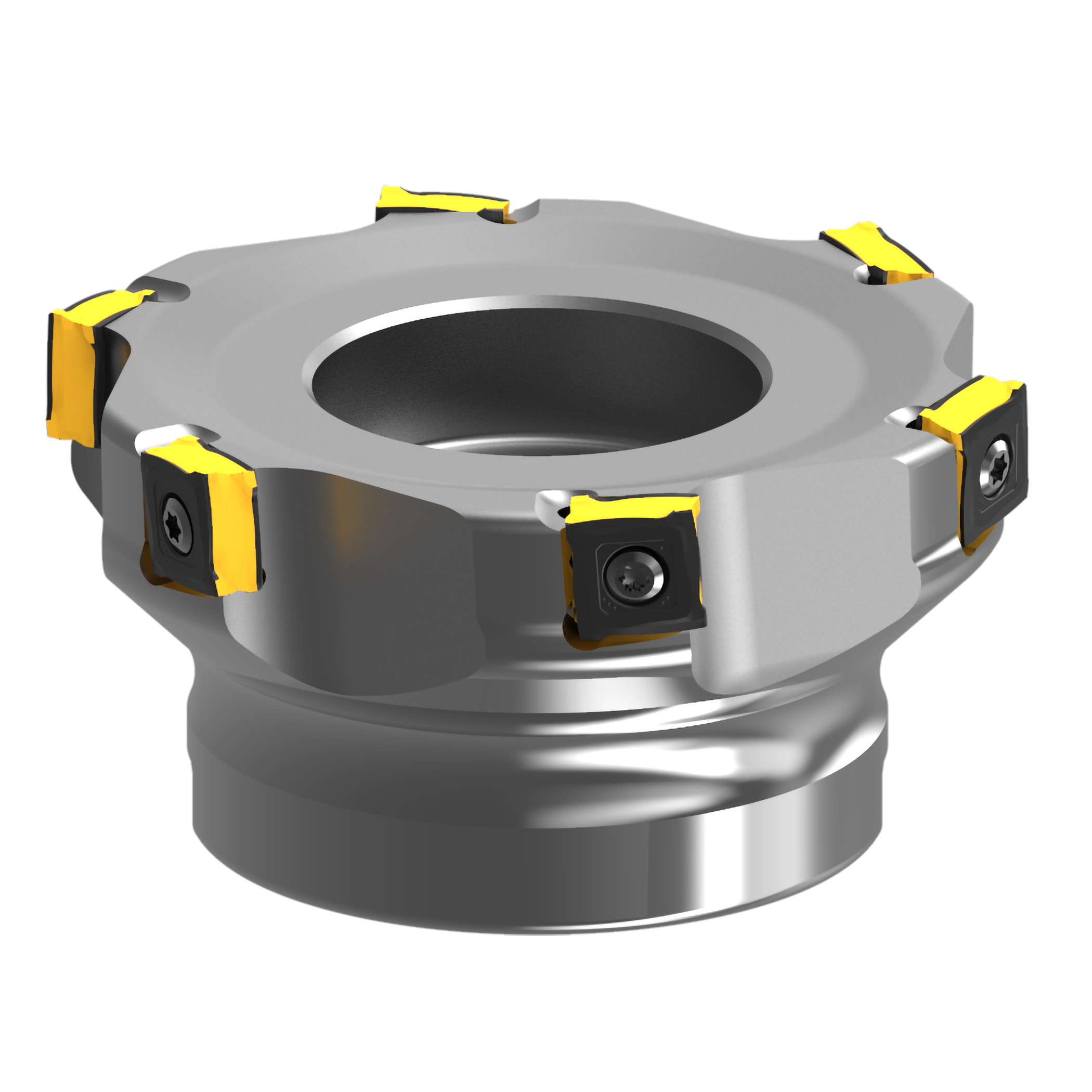

  • Strong Edge Insert Type Shoulder Milling Cutter for Cast Iron
  • Tangential inserts with high strength cutting edge.
  • Economical 8 cutting edge inserts.
  • Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：560892

EAN Code： 4994196575496

ANSI：VOX400R10006D

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
100
LF
50
DCONMS
31.75
CBDP
32
DCCB
45
KWW
12.7
L8
8
DHUB
70
KAPR
90°
APMX
10
CSP
-
CICT
6
ZEFP
6
GAMP
-6°
GAMF
-18°
WT
1.5 kg
