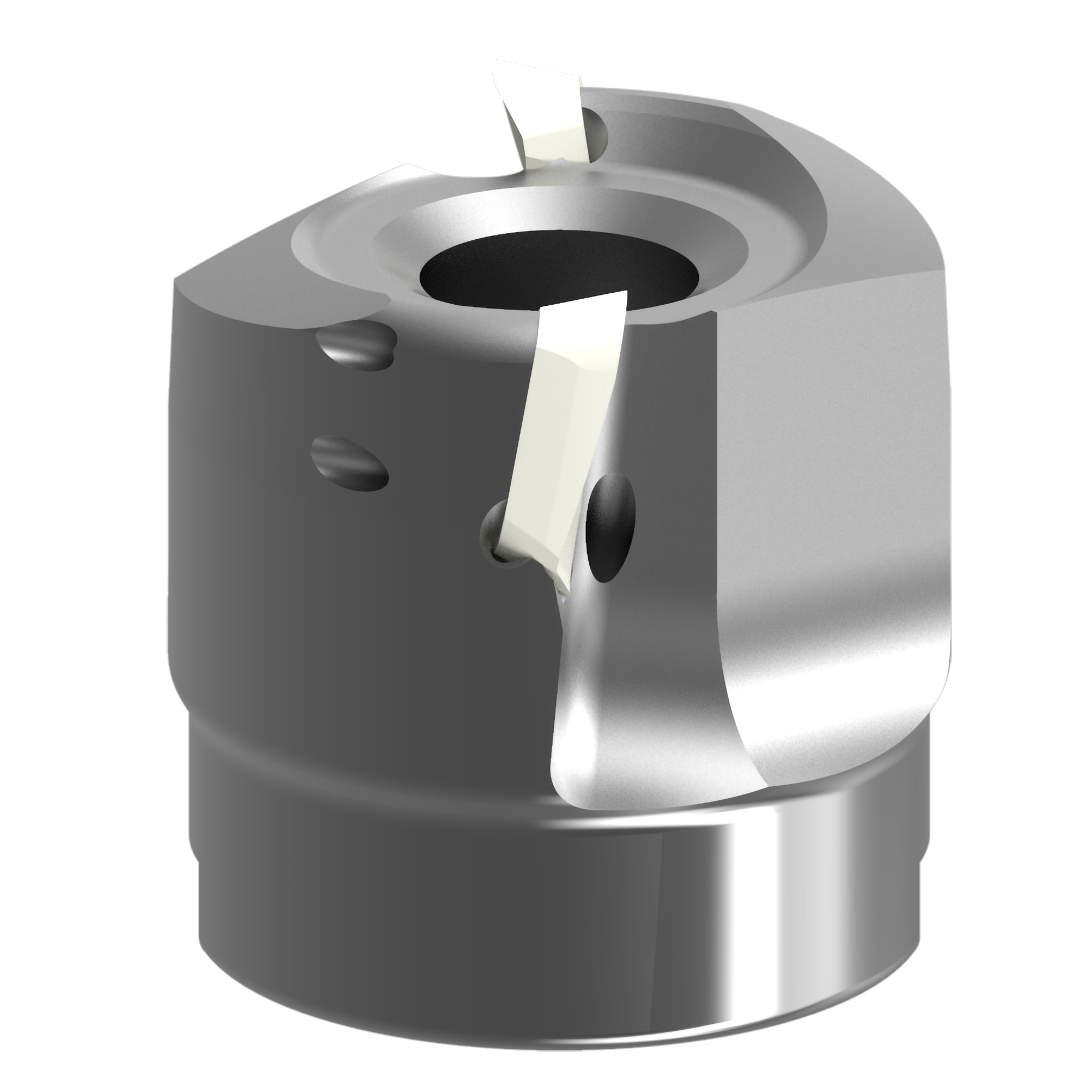

Milling Cutter for Aluminium and Titanium Alloys
Low resistance chipbreaker.
Excellent wall accuracy.
For high-speed machining.
Multi-functional machining.
With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：566961

EAN Code： 4994196575779

ANSI：AXD4000-050A02RB

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details

Stock: Inventory maintained in Japan.
HAND: Right Hand
DC: 50
LF: 50
DCONMS: 22
CBDP: 20
DAH: 11
DCCB: 17
KWW: 10.4
L8: 6.3
DHUB: 45
KAPR: 90°
APMX: 14.8
RPMX: 35000
CSP: ◯
CICT: 2
ZEFP: 2
GAMP: 15°
GAMF: 23°
WT: 0.4 kg
