ASX400-200C16R

ASX400-200C16R

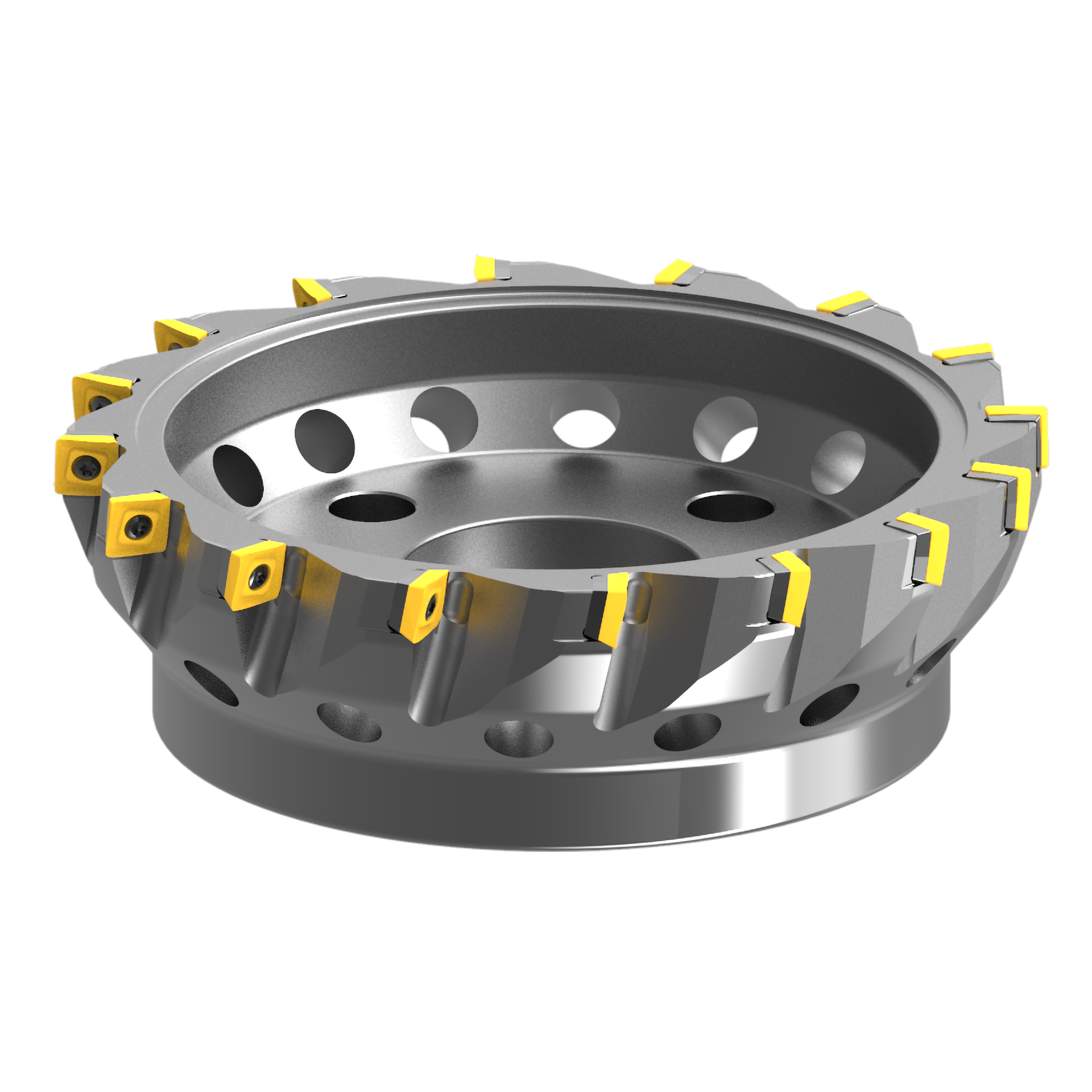

  • Screw-on Insert Type Shoulder Milling Cutter
  • High precision non-grinding insert.
  • Economical due to the use of 4 cutting edges.
  • Excellent wall surface precision with curved cutting edges and high precision body.
  • Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：490071

EAN Code： 4994196284183

ANSI：ASX400-200C16R

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
200
LF
63
DCONMS
60
CBDP
32
DAH
18
DCCB
135
KWW
25.7
L8
14.22
DHUB
160
KAPR
90°
APMX
10
DBC
101.6
RPMX
9000
CSP
-
CICT
16
ZEFP
16
GAMP
11°
GAMF
-9°
WT
6.2 kg
