ASX400-160C08R

ASX400-160C08R

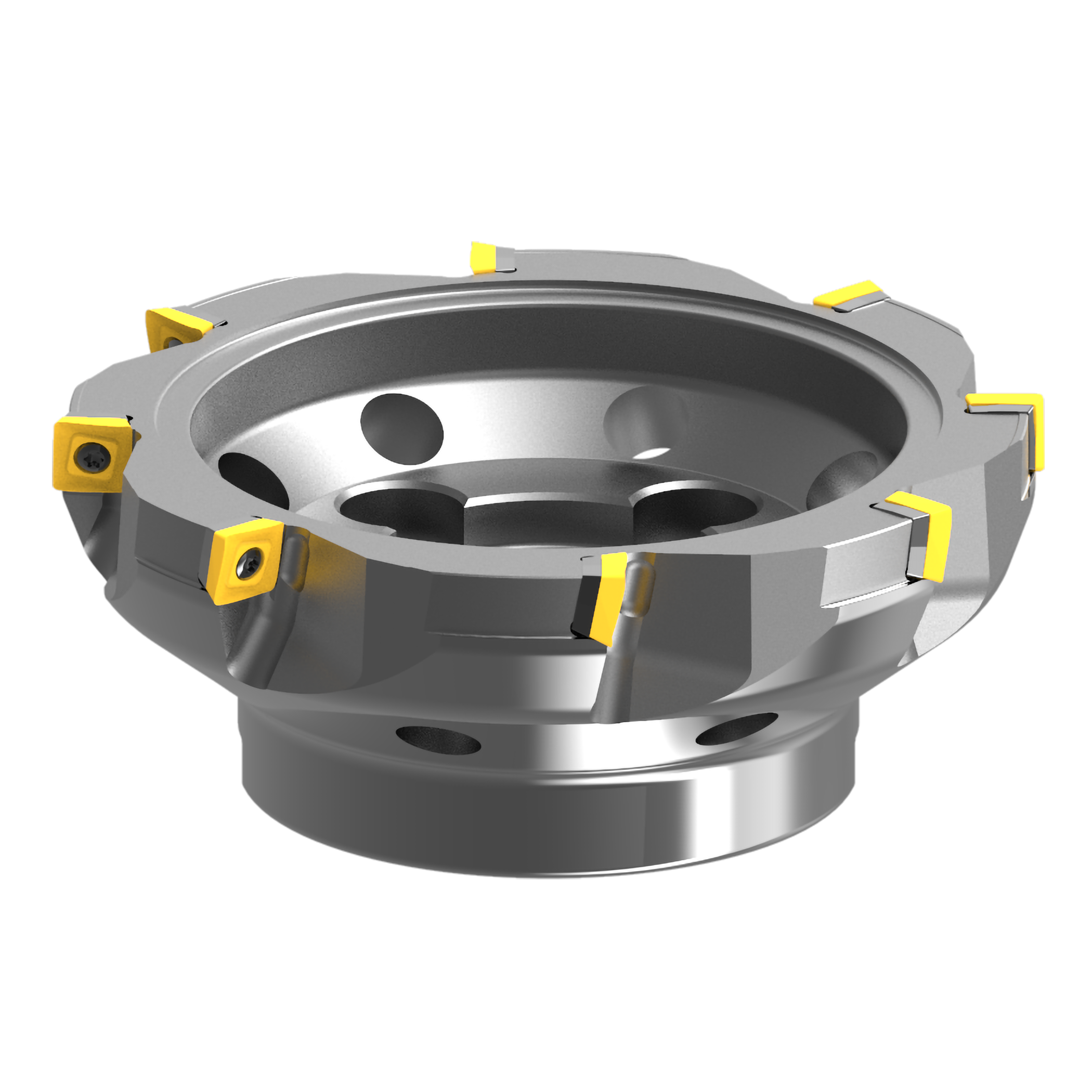

  • Screw-on Insert Type Shoulder Milling Cutter
  • High precision non-grinding insert.
  • Economical due to the use of 4 cutting edges.
  • Excellent wall surface precision with curved cutting edges and high precision body.
  • Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：490046

EAN Code： 4994196284114

ANSI：ASX400-160C08R

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
160
LF
63
DCONMS
40
CBDP
29
DAH
14
DCCB
56
KWW
16.4
L8
9
DHUB
100
KAPR
90°
APMX
10
DBC
66.7
RPMX
10000
CSP
-
CICT
8
ZEFP
8
GAMP
11°
GAMF
-9°
WT
3.6 kg
