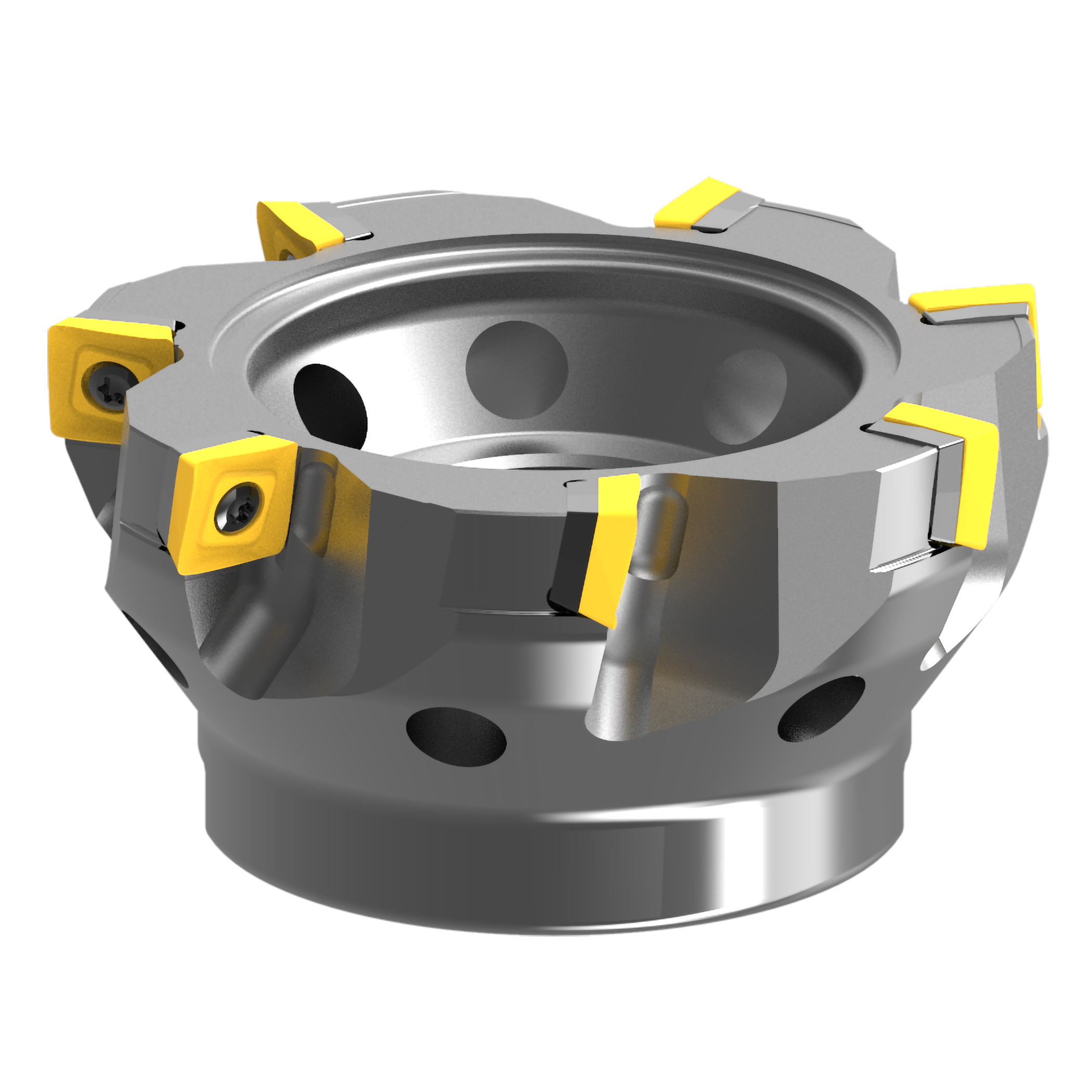

ASX400-100B07R

ASX400-100B07R

  • Screw-on Insert Type Shoulder Milling Cutter
  • High precision non-grinding insert.
  • Economical due to the use of 4 cutting edges.
  • Excellent wall surface precision with curved cutting edges and high precision body.
  • Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：489993

EAN Code： 4994196284152

ANSI：ASX400-100B07R

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
100
LF
50
DCONMS
32
CBDP
32
DCCB
45
KWW
14.4
L8
8
DHUB
70
KAPR
90°
APMX
10
RPMX
13000
CSP
-
CICT
7
ZEFP
7
GAMP
11°
GAMF
-9°
WT
1.4 kg
