ASX400-080B08R

ASX400-080B08R

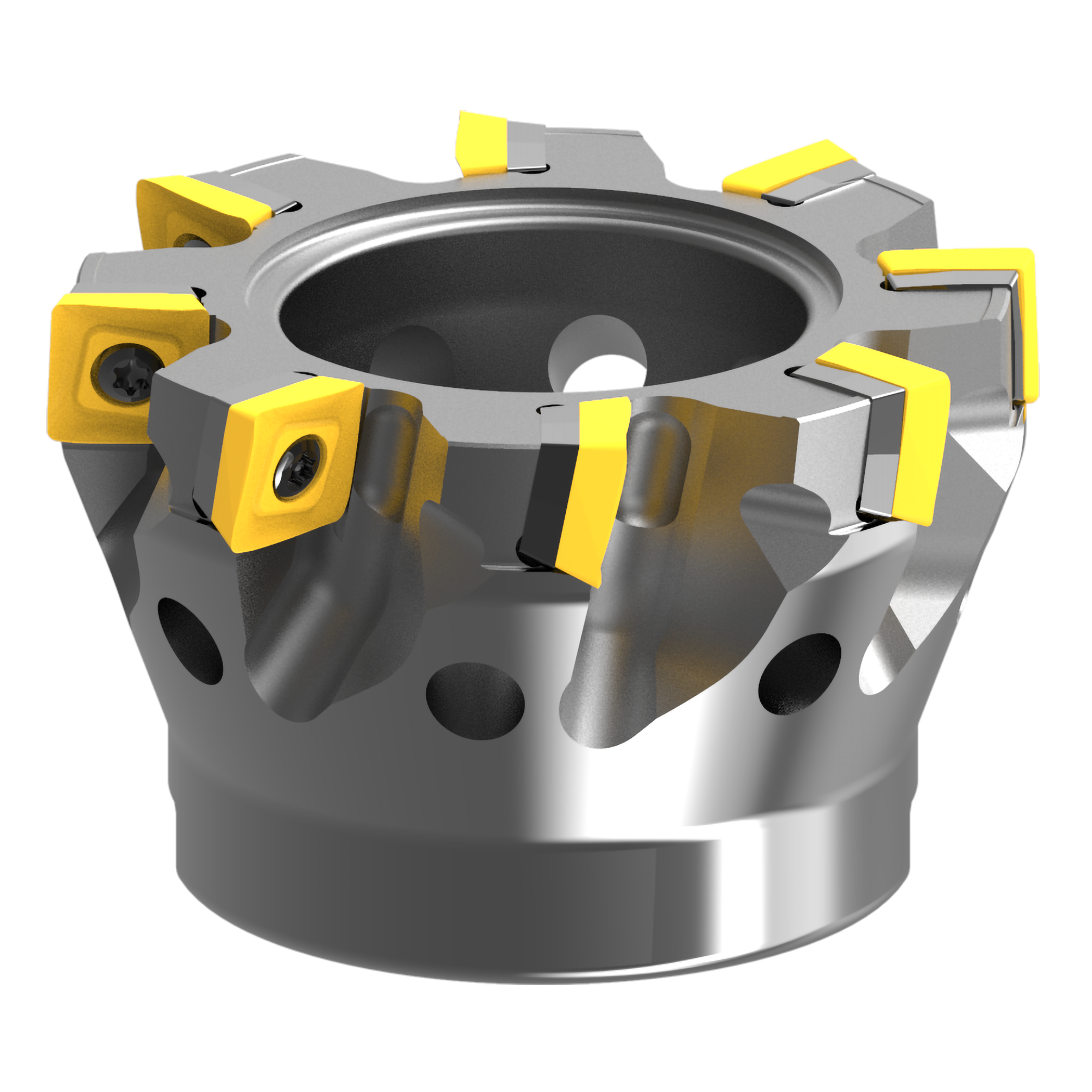

  • Screw-on Insert Type Shoulder Milling Cutter
  • High precision non-grinding insert.
  • Economical due to the use of 4 cutting edges.
  • Excellent wall surface precision with curved cutting edges and high precision body.
  • Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：404591

EAN Code： 4994196333522

ANSI：ASX400-080B08R

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
80
LF
50
DCONMS
27
CBDP
29
DCCB
38
KWW
12.4
L8
7
DHUB
60
KAPR
90°
APMX
10
RPMX
14000
CSP
-
CICT
8
ZEFP
8
GAMP
11°
GAMF
-10°
WT
0.9 kg
Shape EDP Order Number Stock Category Bundled quantity
