ASX400-063A06R

ASX400-063A06R

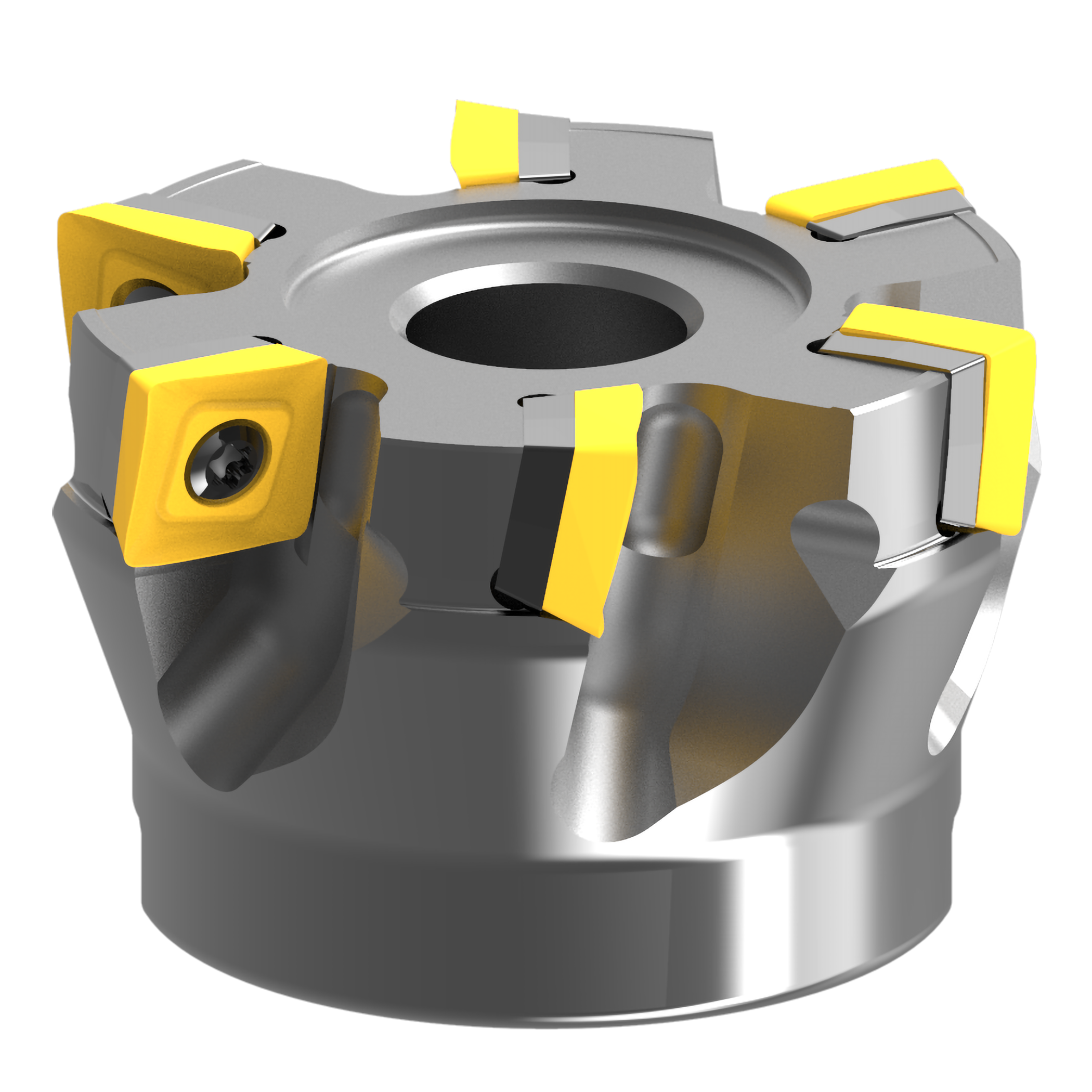

  • Screw-on Insert Type Shoulder Milling Cutter
  • High precision non-grinding insert.
  • Economical due to the use of 4 cutting edges.
  • Excellent wall surface precision with curved cutting edges and high precision body.
  • Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：316005

EAN Code： 4994196333621

ANSI：ASX400-063A06R

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
63
LF
40
DCONMS
22
CBDP
20
DAH
11
DCCB
17
KWW
10.4
L8
6.3
DHUB
50
KAPR
90°
APMX
10
RPMX
16000
CSP
-
CICT
6
ZEFP
6
GAMP
11°
GAMF
-10°
WT
0.5 kg
