AJX12-063A05R

AJX12-063A05R

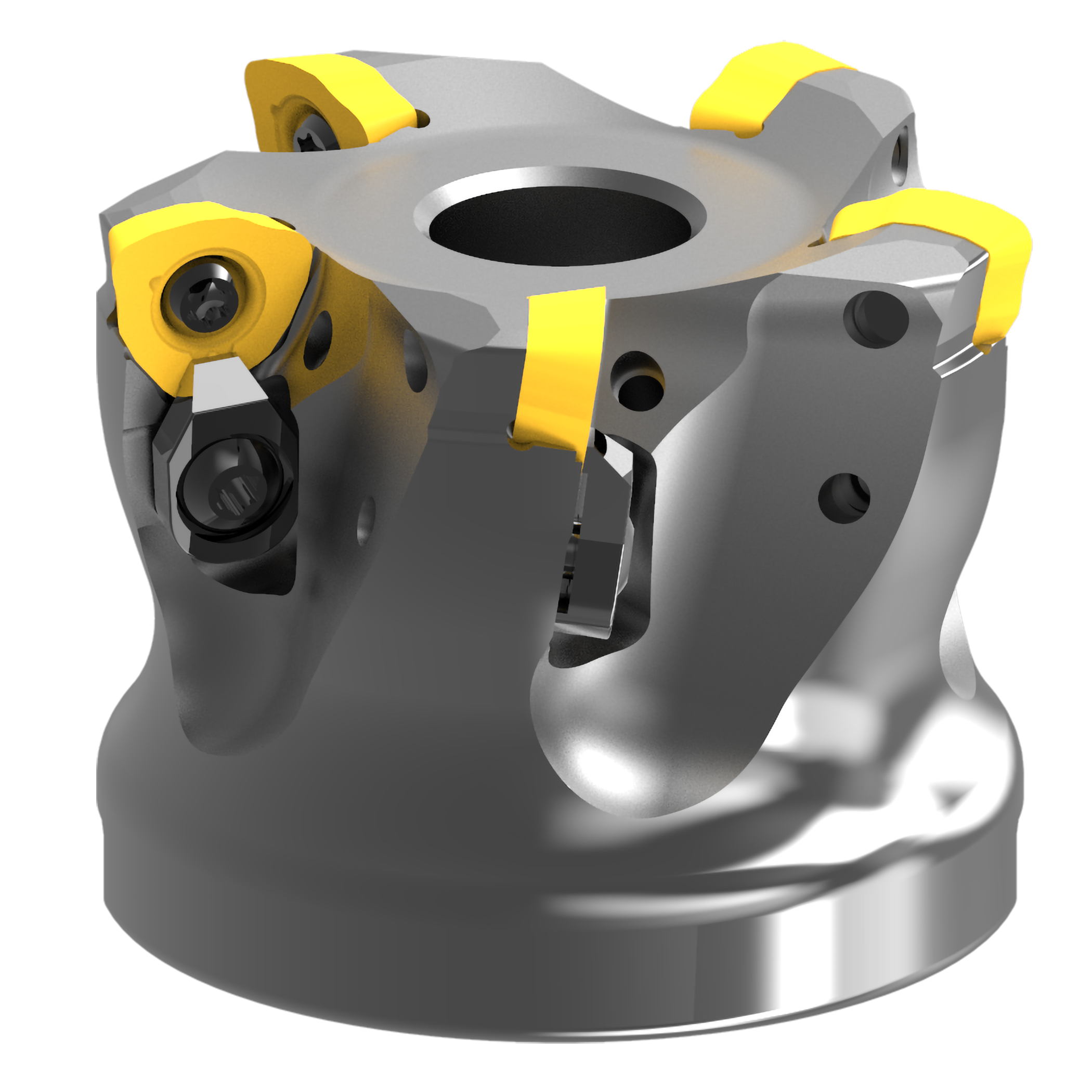

  • High Feed Radius Milling Cutter
  • 15° positive insert.
  • High rigidity double clamp structure.
  • Suitable for high feed cutting.
  • Special insert design with 3 cutting edges.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：434247

EAN Code： 4994196443290

ANSI：AJX12-063A05R

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
51.3
DCX
63
LF
50
DCONMS
22
CBDP
20
DAH
11
DCCB
17
KWW
10.4
L8
6.3
DHUB
60
APMX
2
AZ
1.5
CSP
◯
CICT
5
ZEFP
5
GAMP
8°
GAMF
-5°
WT
0.9 kg
