DVPNR2020K16 - Product - Web Catalog | MITSUBISHI MATERIALS U.S.A

EXTERNAL TURNING TOOLS
Double clamp type.
Holds inserts securely.
Excellent cutting edge tolerance.
Economical negative insert.
Small insert series.

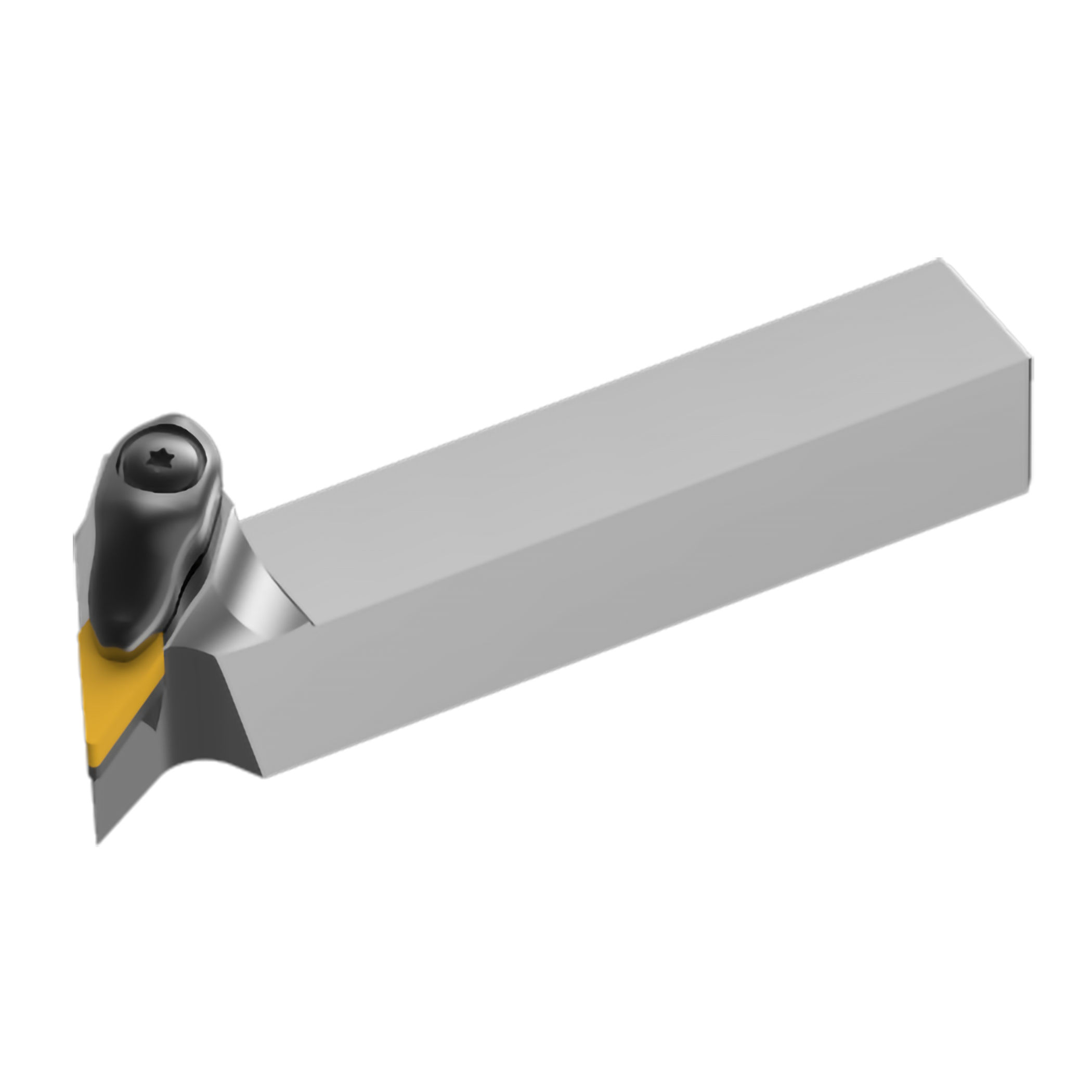

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：449369

EAN Code： 4994196433932

ANSI：DVPNR2020K16

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details

Stock: Inventory maintained in Japan.
HAND: Right Hand
KAPR: 117.5°
H: 20
B: 20
LF: 125
LH: 32
HF: 20
WF: 25
GAMF: 7°
GAMP: -13°
CICT: 1
Applicable_Inserts: VN〇A1604〇〇,VN〇G1604〇〇,VN〇M1604〇〇
