Turning Tools

ISO Inserts

Positive without hole

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/Z_ISO_insert_T_nothing.svg
P M K

TPGR321R UTi20T

TPGR321R

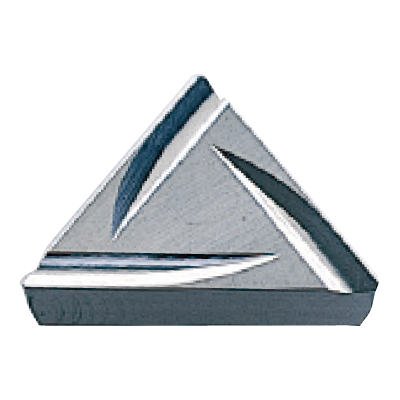

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：10

EDP No：401550

EAN Code： 4994196252434

ANSI：TPGR321R

ISO：TPGR160304R

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed

Product Details
Stock
Inventory maintained in Japan.
Tool_Material
Carbide
Grade
UTi20T
HAND
Right Hand
CNC
3
D1
0
IC
9.525
S
3.18
RE
0.4
EPSR
60°
AN
11°
CBMD_catalog
R/L

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.

Tool Material

Ultra Micro Grain Carbide
Ultra micro grain carbide is used as the substrate material
Cubic Boron Nitride
Mitsubishi’s original CBN is used.
Ceramic
Ceramic is used as the substrate material.
High Hardness Powder Metallurgy HSS
High hardness powder metallurgy HSS is used as the substrate material.
Ultra Micro Grain HSS
Cobalt high speed steel is used as the substrate material.
High Speed Steel
High speed steel is used as the substrate material.
