DLC Coated Grade for Turning of Non-Ferrous Metals

LC2005

my list Check the My list

New Thin-Film DLC Coating for Precision Machining.
Displays Outstanding Adhesion and Wear Resistance Properties.

  • icon_n
  • icon_finish
Product Brochure
LC2005

Hydrogen-Free DLC Coating, Evolved

DLC coating is a film that possesses both the hardness of diamond and the lubricity of graphite.

It is particularly suitable for aluminium alloy machining due to its excellent wear resistance and antiadhesion properties, especially in cutting tools.

Hydrogen-free DLC films have high hardness and provide superior wear and heat resistance, which is why they have been widely used in cutting tools.

Generally, while hydrogen-free DLC excels in wear and heat resistance, it faces the challenge of being prone to peeling due to the significant hardness difference from the substrate.

Mitsubishi Materials has overcome this issue by adopting a newly developed thin hydrogen-free DLC film with improved adhesion, thereby achieving an excellent balance of wear resistance and strong adhesion.



Features

Three Key Features of Hydrogen-Free DLC Coating

  • Thin Coating Effective for Precision Machining

Ideal for machining high-precision components, delivering excellent component surface finishes.

  • High Hardness with Excellent Wear Resistance

Its high hardness provides superior wear resistance, resulting in extended tool life.

  • Outstanding Adhesion

Achieves superior adhesion, suppressing sudden dimensional discrepancies caused by film peeling or chipping.

It’s environmentally friendly because of the performance efficiency improvements and longer tool life.

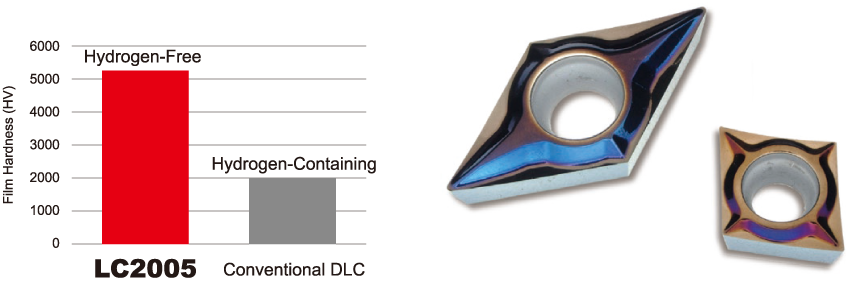

A Hydrogen-Free DLC Coating with Excellent Wear and Heat Resistance

The thin-film enhances adhesion, achieving excellent tool life in both wet and dry cutting.

A Hydrogen-Free DLC Coating with Excellent Wear and Heat Resistance
The colours of DLC coatings can vary in appearance depending on the thickness of the film.
However, this is only visual and has no effect on quality or performance.

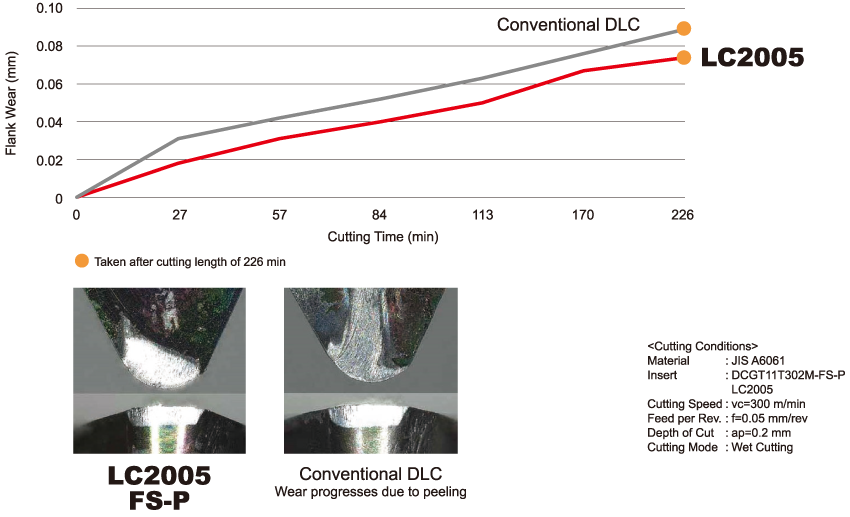

  • Wear resistance comparison when machining A6061

Mitsubishi Materials’ hydrogen-free coating has excellent peeling resistance and demonstrates the inherent high performance of the coating.

Cutting Performance

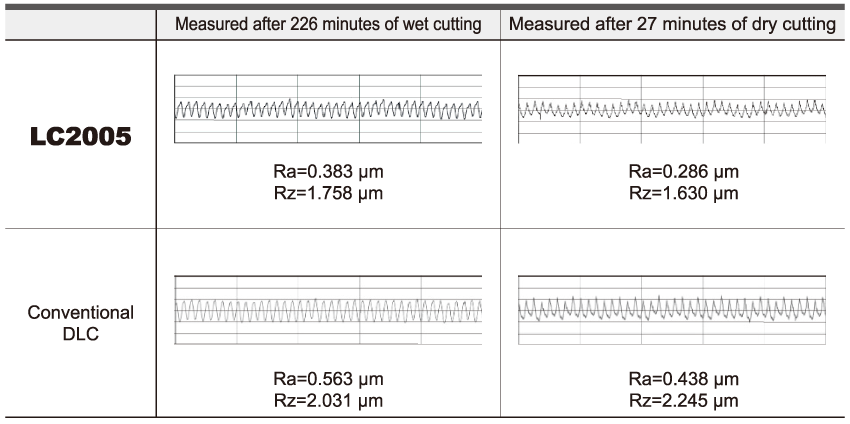

Comparison of component surface finish when machining A6061

The sharpness of the cemented carbide substrate cutting edge and the smoothness of the thin-film make it possible to achieve high-quality machining.

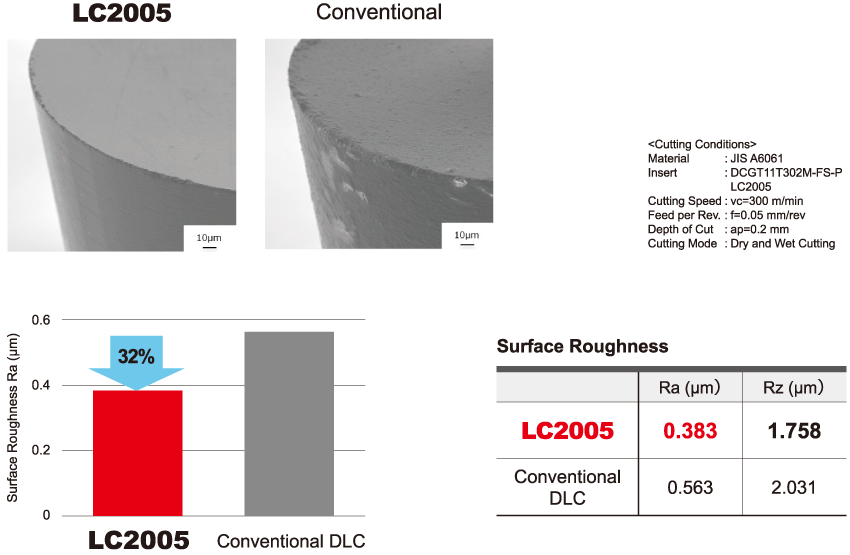

Extremely High Quality Cutting Edge

Comparison of component surface finish when machining A6061
